POSITION: HOME > Products > Taping & Bundling

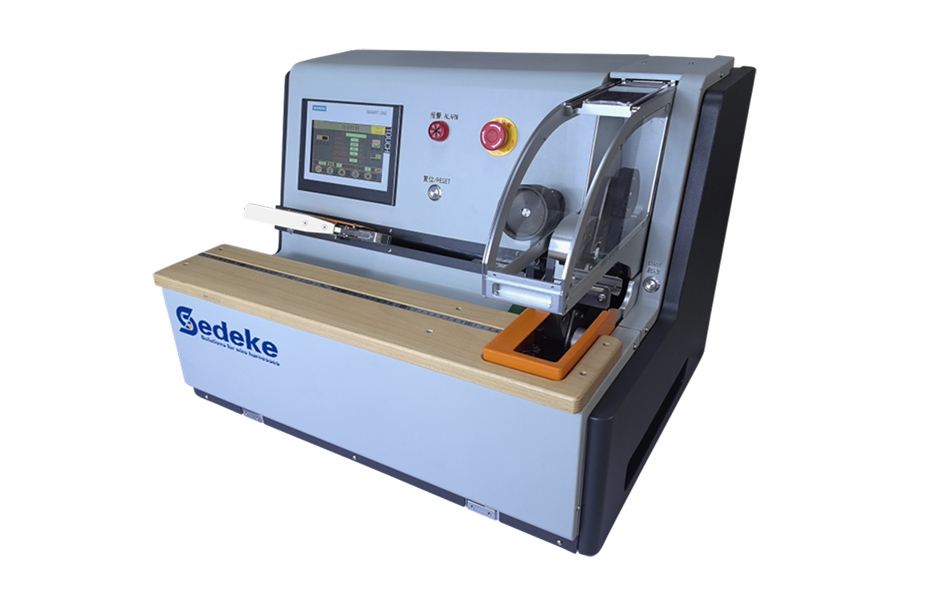

STP-D Automatic Tape Wrapping Machine
STP-D Fixed-length traction type automatic tape wrapping machine is a wire harness automation equipment that realizes tape fixed length wrapping, which can realize complex wrapping process, initial traction, setting the length of wrapping and reliable protection.
Share us:
STP-D Automatic Tape Wrapping Machine
STP-D Automatic Tape Wrapping Machine
/d/images/products/taping-and-bundling/STP-D%20automatic%20tape%20wrapping%20machine%20(2).jpg
/d/images/products/taping-and-bundling/STP-D%20automatic%20tape%20wrapping%20machine%20(3).jpg
Products List
Cutting
Cutting
EC-6100 Automatic Heat Shrink Tube Cutting Machine
EC-830 Corrugated Tube Cutting Machine
EC-6500 Automatic Cable and Tube Cutting Machine
EC-810 Automatic Cable Cutting Machine
EC-850X Automatic Rotary Cutting Machine
EC-821 Corrugated Tube Cutting Machine
EC-890 Multifunctional Automatic Cutting Machine
EC-6800 Automatic Cutting Machine
EC-823 High Speed Cutting Machine
EC-805 Automatic Cable Cutting Machine
Stripping
Stripping
UniStrip 2016 Pneumatic Wire Stripping Machine
UniStrip 2018E Electric Cable Wire Stripping Machine
CS-5507 Automatic coaxial cable stripping machine
CS-5515 Automatic coaxial cable stripping machine
CS-400 Braided Shield Cable Stripping Machine
CS Series Rotary Cable Stripping Machine
CS-2486 Coaxial Cable Wire Stripping Machine
CS-4855 Coaxial Cable Stripping Machine
CS-9580 Automatic Coaxial Cable Stripping Machine
CS-9680 Automatic Coaxial Cable Stripping Machine
Cutting & Stripping
Cutting & Stripping
ESC-BX1 Wire Cutting and Stripping Machine
ESC-BX4 Wire Cutting And Stripping Machine
ESC-BX30 Automatic Large Cable Cutting and Stripping Machine
ESC-BX30S Sheathed Cable Automatic Cutting and Stripping Machine
ESC-BXSNY Automatic Rotary Cable Stripping Machine
ESC-BX6 Wire Cutting And Stripping Machine
ESC-BX7 Wire Cutting And Stripping Machine
ESC-BX8S Sheath Cable Cutting and Stripping Machine
ESC-BX8PR Wire Cutting And Stripping Machine
ESC-BX9 Automatic Cut and Strip Machine
Crimping
Crimping
TM-20 Terminal Crimping Machine
TM-20S Automatic Wire Terminal Crimping Machine
TM-200 Terminal Crimping Machine
TM-E140 Pre-insulation Ferrule Terminal Strip And Crimp Machine
TM-E116 Electrical Terminal Crimping Machine
TM-P120 Pneumatic Terminal Crimping Machine
SAT-AS6P Pneumatic Crimping Applicator
SAT-MS6 Mechanical Crimping Applicator
TM-E140S Automatic Wire Stripping Ferrule Crimping Machine
Side Feed Terminal Crimping Applicator
Stripping & Crimping
Stripping & Crimping
TM-200SC Automatic Strip and Weather Pack Terminal Crimp Machine
TM-20SCM Automatic Cable Stripping and Crimping Machine
TM-80SCS Servo Stripping and Crimping Machine
TM-30SC Stripping and Crimping Machine
TM-15SCE Electrical Stripping and Crimping Machine
TM-20SCS Servo Stripping and Crimping Machine
TM-15SC Stripping and Crimping Machine
TM-E140 Pre-insulation Ferrule Terminal Strip And Crimp Machine
Stripping & Bending
Stripping & Bending
ESC-BZ30-3D Wire Cut Strip 3D Bending Machine
ESC-BZ06 Wire Cutting Stripping and Bending Machine
ESC-BZ16 Automatic Cutting Stripping and Bending Machine
Cutting Stripping & Crimping
Cutting Stripping & Crimping
ACC-101 Automatic Single-head Terminal Crimping Machine
ACC-102A Fully Automatic Terminal Crimping Machine (Both Ends）
ACC-102B Automatic Double Terminal Crimping Machine
ACC-105 Fully Automatic Single-head End-dipping Tin Machine
ACC-106 Fully Automatic 5-Wire Single-head End-dipping Tin Machine
ACC-308 (Both ends) Full automatic Soldering machine
ACC-208 Fully Automatic Crimping Machine (Both Ends)
ACC-508 Fully Automatic Twisting, Soldering and Crimping Machine
ACC-608 Fully Automatic Flat Cable Cut Strip and Crimp Machine
High-voltage Cable Processing
High-voltage Cable Processing
HV-CS 9070 High-Voltage Cable Shield Cutting Machine
HV-FS 9053 Cable Shield Folding Machine
HV-ACS 9100 Cable Shield Processing Machine
HV-ACS 9200 Automatic Cable Shield Processing System
HV-ACS 9300 Automotive High Voltage Cable Processing Machine
HV-ACS 9500 High Voltage Cable Processing Machine
HV-FC 9312 Aluminum Foil Cutting Machine
HV-CS 9120 Cable Stripping Machine
FAKRA Connectors Processing
FAKRA Connectors Processing
TM-FK40 Terminal Crimping Machine
CS-5507 Automatic coaxial cable stripping machine
CS-5515 Automatic coaxial cable stripping machine
CS-4855 Coaxial Cable Stripping Machine
CS-2486 FAKRA Cable Stripping Machine
Heat Shrink Equipment
Heat Shrink Equipment
HSM-60 Heat Shrink Tube Processing Machine
HSM-70 Heat Shrink Tube Processing Machine
HSM-80B Heat Shrink Tube Processing Machine
HSM-90 Heat Shrink Tube Processing Machine
HSM-25M Heat Shrink Tube Processing Machine
HSM-120 Heat Shrink Tube Heating Machine
HSM-50 Heat Shrink Tube Processing Machine
HSM-160 Heat Shrink Tube Processing Machine
HSM-80A Heat Shrink Tube Heating Machine
HSM-260E Enclosed Heat Shrink Tube Processing Machine
Taping & Bundling
Taping & Bundling
STB-10 Automatic Tape Bundling Machine
STB-30 Automatic Tape Bundling Machine
STB-50 Desktop Bundling Machine
STB-60 Adhesive Tape Bundling Machine
STB-55 Desktop Tape Bundling Machine
STB-50C Automatic Tape Cutting Machine
STP-B Hand-held Taping Machine
STP-F Hand-held Lithium Battery Tape Wrapping Machine
STP-C Automatic Wire Taping Machine
STP-D Automatic Tape Wrapping Machine
Winding & Bundling
Winding & Bundling
CB-B15MCS Automatic Wiring Winding Machine
CB-B15MCST Automatic Wiring Winding Binding Machine
CB-F30/150MCS Automatic Wiring Winding Machine
CB-F30/150MCST18-45 Automatic Wiring Winding Binding Machine
CB-F30/150MCST40-80 Automatic Wiring Winding Binding Machine
CB-B15CST Automatic Wiring Coiling Binding Machine
CB-F500MCS Automatic Wiring Winding Machine
CB-B30/150CS Automatic Wiring Winding Machine
CB-B10/15CS Automatic Wiring Winding Machine
CB-WT630 Automatic Wire Winding and Tying Machine
Feeding & Coiling
Feeding & Coiling
PF-08 Automatic Wire Prefeeder
PF-30 Automatic Prefeeding Machine
PF-60 Automatic Prefeeding Machine
PF-150 Automatic Wire Prefeeding Machine
CC-380 Cable Coiling Machine
CC-680 Automatic Cable Coiling Machine
CC-380D Cable Coil Machine
PF-120 Large Automatic Wire Prefeeding Machine
PF-90 Automatic Wire Prefeeder
PF-100 Automatic Prefeeder
Quality Apparatus
Quality Apparatus
PFM-220 Terminal Pulling Force Tester
PFM-300 Terminal Pulling Force Tester
PFM-200 Pull Force Tester For Wire Terminals
TCA-120 Terminal Cross Section Analyzer
TCA-120S Terminal Cross Section Analyzer
TCA-150 Terminal Cross Section Analyzer
PFM-50 Pull Force Measuring Machine
Tools
Tools
TCT8-B Cable Tie Tools
TCT8-C Cable Tie Tools
Hand Crimp Tool
Pneumatic Crimp Tool
Features
Parameters
Application
Features
01
Good for tape wrapping of thin wires, open corrugated tubes
02
Tape replacement reminder can be set according to the process
03
Good shield to keep operator and wiring harness safe
04
Can store 999 sets of program parameters
STP-D Fixed-length traction type automatic tape wrapping machine is a wire harness automation equipment that realizes tape fixed length wrapping, which can realize complex wrapping process, initial traction, setting the length of wrapping and reliable protection. It can quickly realize the wrapping of thin wire harness or simple bifurcated wire harness, greatly improve the quality and efficiency of the wrapping, accurately control the pressing rate, set the length of the wrapping, and save tape.

Product features:
Fixed length traction tape wrapping machine skillfully integrates mechanical, detection and automation technology, so that the wiring harness tape wrapping process is more convenient, more efficient, more intelligent.

Fixed-length tape wrapping:
The equipment can automatically wind the tape at a set distance to maximize production efficiency. The tape winding with a length of 2 meters can be processed with an accuracy of plus or minus 20mm.

Pneumatic clamping:
Pneumatic soft material clamping will not damage the wire and will not pull the wire out of the connector.

Strong applicability:
It can be used for large-diameter wire harness tape wrapping, and has a good effect on small-diameter wire harness tape winding, reducing or eliminating the twisting phenomenon of wire harness tape in small-diameter wire harness tape winding.

Personalized process:
Through program setting, the parameters of complex processes can be set, and the length of each section, tape winding speed, and horizontal feed speed can be set to achieve the glue wrapping effect of dense winding, spaced winding, and combined winding processes.

Two-level management authority:
Set up two levels of authority for the operator and the manager to facilitate the management of program parameters.

Safe and reliable:
The protective cover is opened/closed automatically, preventing the operator or the wiring harness from being damaged by the machine.

Parameters
Dimensions 500x523x467mm
Power supply 110V/220V AC (±10%)
Air source 0.5-0.6MPa
Horizontal feeding speed 0-200mm/s
Rotating speed 60-550 rpm (Type I)
Tape width 9-19mm
Wire harness Diameter 2-22mm (Type II)  5-32mm (Type I)
Outer diameter of tape roll ≤110mm, or customized
Inner diameter of tape mandrel 38mm or 32mm or custom
Tape material PVC, cloth fiber, felt, etc
Application
