POSITION: HOME > Products > FAKRA Connectors Processing

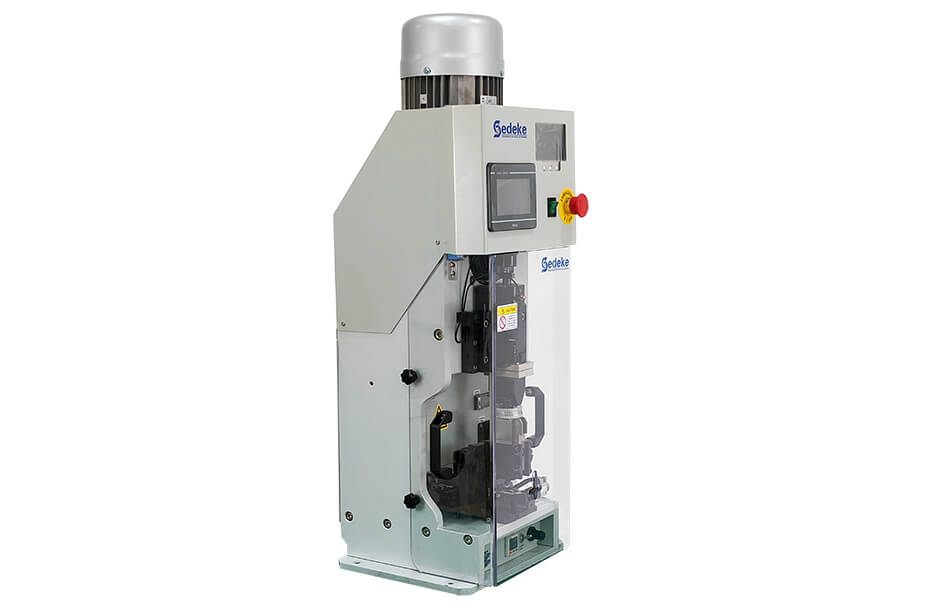

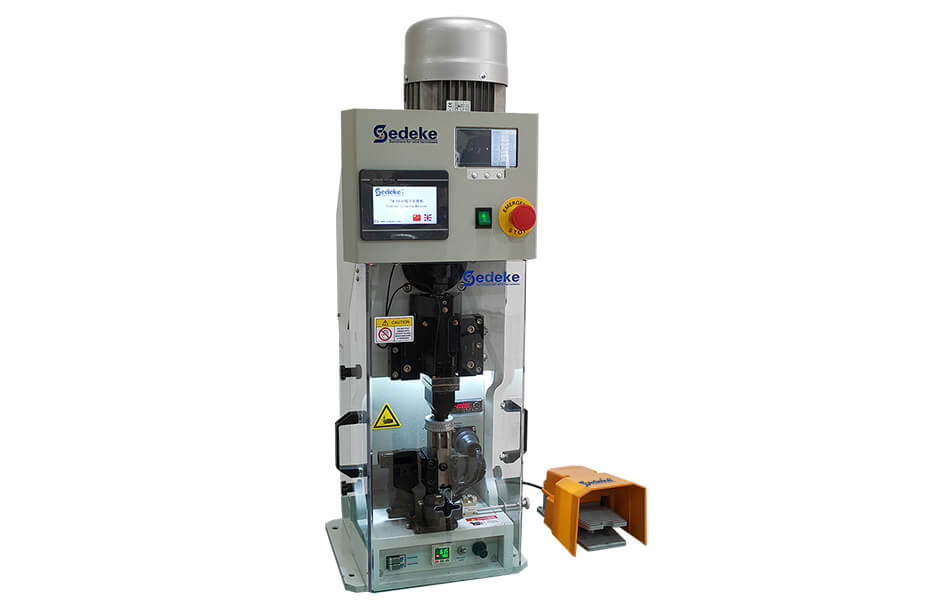

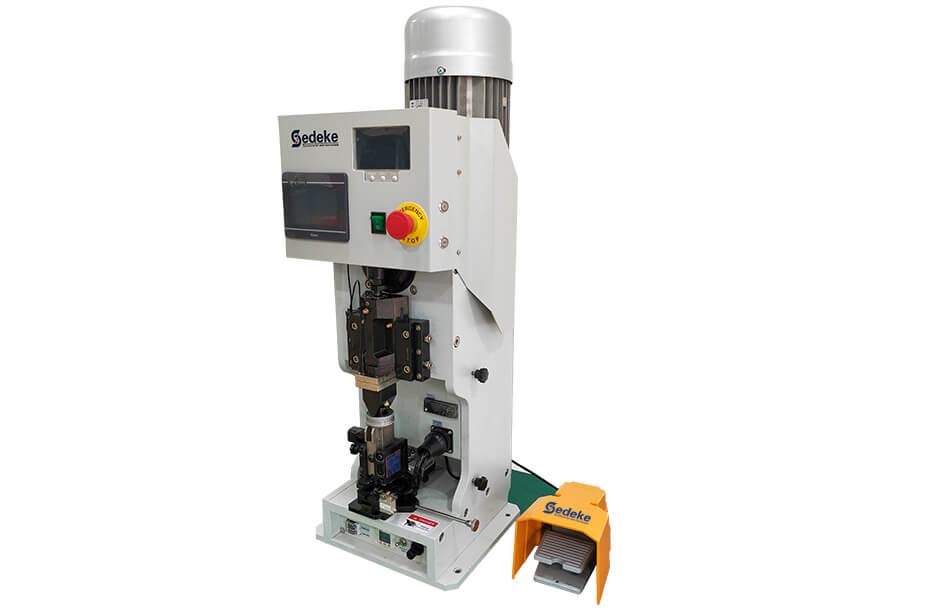

TM-FK40 Terminal Crimping Machine
TM-FK40 semi-auto crimping machine is for FAKRA connector terminals. CFM device is optional. We can customize applicators for your requirements.
Share us:
TM-FK40
TM-FK40
TM-FK40
TM-FK40
/d/images/products/fakra-connectors-processing/TM-FK40%20FAKRA%20CONNECTOR-2.jpg
/d/images/products/fakra-connectors-processing/TM-FK40%20FAKRA%20CONNECTOR-3.jpg
/d/images/products/fakra-connectors-processing/TM-FK40%20FAKRA%20CONNECTOR-4.jpg
/d/images/products/fakra-connectors-processing/TM-FK40%20FAKRA%20CONNECTOR-5%20(1).jpg
Products List
Cutting
Cutting
EC-6100 Automatic Heat Shrink Tube Cutting Machine
EC-830 Corrugated Tube Cutting Machine
EC-6500 Automatic Cable and Tube Cutting Machine
EC-810 Automatic Cable Cutting Machine
EC-850X Automatic Rotary Cutting Machine
EC-821 Corrugated Tube Cutting Machine
EC-890 Multifunctional Automatic Cutting Machine
EC-6800 Automatic Cutting Machine
EC-823 High Speed Cutting Machine
EC-805 Automatic Cable Cutting Machine
Stripping
Stripping
UniStrip 2016 Pneumatic Wire Stripping Machine
UniStrip 2018E Electric Cable Wire Stripping Machine
CS-5507 Automatic coaxial cable stripping machine
CS-5515 Automatic coaxial cable stripping machine
CS-400 Braided Shield Cable Stripping Machine
CS Series Rotary Cable Stripping Machine
CS-2486 Coaxial Cable Wire Stripping Machine
CS-9580 Automatic Coaxial Cable Stripping Machine
CS-9680 Automatic Coaxial Cable Stripping Machine
Cutting & Stripping
Cutting & Stripping
ESC-BX1 Wire Cutting and Stripping Machine
ESC-BX4 Wire Cutting And Stripping Machine
ESC-BX30 Automatic Large Cable Cutting and Stripping Machine
ESC-BX30S Sheathed Cable Automatic Cutting and Stripping Machine
ESC-BXSNY Automatic Rotary Cable Stripping Machine
ESC-BX6 Wire Cutting And Stripping Machine
ESC-BX7 Wire Cutting And Stripping Machine
ESC-BX8S Sheath Cable Cutting and Stripping Machine
ESC-BX8PR Wire Cutting And Stripping Machine
ESC-BX9 Automatic Cut and Strip Machine
Crimping
Crimping
TM-20 Terminal Crimping Machine
TM-20S Automatic Wire Terminal Crimping Machine
TM-200 Terminal Crimping Machine
TM-E140 Pre-insulation Ferrule Terminal Strip And Crimp Machine
TM-E116 Electrical Terminal Crimping Machine
TM-P120 Pneumatic Terminal Crimping Machine
SAT-AS6P Pneumatic Crimping Applicator
SAT-MS6 Mechanical Crimping Applicator
TM-E140S Automatic Wire Stripping Ferrule Crimping Machine
Side Feed Terminal Crimping Applicator
Stripping & Crimping
Stripping & Crimping
TM-200SC Automatic Strip and Weather Pack Terminal Crimp Machine
TM-20SCM Automatic Cable Stripping and Crimping Machine
TM-80SCS Servo Stripping and Crimping Machine
TM-30SC Stripping and Crimping Machine
TM-15SCE Electrical Stripping and Crimping Machine
TM-20SCS Servo Stripping and Crimping Machine
TM-15SC Stripping and Crimping Machine
TM-E140 Pre-insulation Ferrule Terminal Strip And Crimp Machine
Stripping & Bending
Stripping & Bending
ESC-BZ30-3D Wire Cut Strip 3D Bending Machine
ESC-BZ06 Wire Cutting Stripping and Bending Machine
ESC-BZ16 Automatic Cutting Stripping and Bending Machine
Cutting Stripping & Crimping
Cutting Stripping & Crimping
ACC-101 Automatic Single-head Terminal Crimping Machine
ACC-102A Fully Automatic Terminal Crimping Machine (Both Ends）
ACC-102B Automatic Double Terminal Crimping Machine
ACC-105 Fully Automatic Single-head End-dipping Tin Machine
ACC-106 Fully Automatic 5-Wire Single-head End-dipping Tin Machine
ACC-308 (Both ends) Full automatic Soldering machine
ACC-208 Fully Automatic Crimping Machine (Both Ends)
ACC-508 Fully Automatic Twisting, Soldering and Crimping Machine
ACC-608 Fully Automatic Flat Cable Cut Strip and Crimp Machine
High-voltage Cable Processing
High-voltage Cable Processing
HV-CS 9070 High-Voltage Cable Shield Cutting Machine
HV-FS 9053 Cable Shield Folding Machine
HV-ACS 9100 Cable Shield Processing Machine
HV-ACS 9200 Automatic Cable Shield Processing System
HV-ACS 9300 Automotive High Voltage Cable Processing Machine
HV-ACS 9500 High Voltage Cable Processing Machine
HV-FC 9312 Aluminum Foil Cutting Machine
HV-CS 9120 Cable Stripping Machine
FAKRA Connectors Processing
FAKRA Connectors Processing
TM-FK40 Terminal Crimping Machine
CS-5507 Automatic coaxial cable stripping machine
CS-5515 Automatic coaxial cable stripping machine
CS-4855 Coaxial Cable Stripping Machine
CS-2486 FAKRA Cable Stripping Machine
Heat Shrink Equipment
Heat Shrink Equipment
HSM-60 Heat Shrink Tube Processing Machine
HSM-70 Heat Shrink Tube Processing Machine
HSM-80B Heat Shrink Tube Processing Machine
HSM-90 Heat Shrink Tube Processing Machine
HSM-25M Heat Shrink Tube Processing Machine
HSM-120 Heat Shrink Tube Heating Machine
HSM-50 Heat Shrink Tube Processing Machine
HSM-160 Heat Shrink Tube Processing Machine
HSM-80A Heat Shrink Tube Heating Machine
HSM-260E Enclosed Heat Shrink Tube Processing Machine
Taping & Bundling
Taping & Bundling
STB-10 Automatic Tape Bundling Machine
STB-30 Automatic Tape Bundling Machine
STB-50 Desktop Bundling Machine
STB-60 Adhesive Tape Bundling Machine
STB-55 Desktop Tape Bundling Machine
STB-50C Automatic Tape Cutting Machine
STP-B Hand-held Taping Machine
STP-F Hand-held Lithium Battery Tape Wrapping Machine
STP-C Automatic Wire Taping Machine
STP-D Automatic Tape Wrapping Machine
Winding & Bundling
Winding & Bundling
CB-B15MCS Automatic Wiring Winding Machine
CB-B15MCST Automatic Wiring Winding Binding Machine
CB-F30/150MCS Automatic Wiring Winding Machine
CB-F30/150MCST18-45 Automatic Wiring Winding Binding Machine
CB-F30/150MCST40-80 Automatic Wiring Winding Binding Machine
CB-B15CST Automatic Wiring Coiling Binding Machine
CB-F500MCS Automatic Wiring Winding Machine
CB-B30/150CS Automatic Wiring Winding Machine
CB-B10/15CS Automatic Wiring Winding Machine
CB-WT630 Automatic Wire Winding and Tying Machine
Feeding & Coiling
Feeding & Coiling
PF-08 Automatic Wire Prefeeder
PF-30 Automatic Prefeeding Machine
PF-60 Automatic Prefeeding Machine
PF-150 Automatic Wire Prefeeding Machine
CC-380 Cable Coiling Machine
CC-680 Automatic Cable Coiling Machine
CC-380D Cable Coil Machine
PF-120 Large Automatic Wire Prefeeding Machine
PF-90 Automatic Wire Prefeeder
PF-100 Automatic Prefeeder
Quality Apparatus
Quality Apparatus
PFM-220 Terminal Pulling Force Tester
PFM-300 Terminal Pulling Force Tester
PFM-200 Pull Force Tester For Wire Terminals
TCA-120 Terminal Cross Section Analyzer
TCA-120S Terminal Cross Section Analyzer
TCA-150 Terminal Cross Section Analyzer
PFM-50 Pull Force Measuring Machine
Tools
Tools
ET-12 Wire Twisting Machine
TCT8-B Cable Tie Tools
TCT8-C Cable Tie Tools
Hand Crimp Tool
Pneumatic Crimp Tool
Features
Parameter
Application
Download
Features
01
OMRON PLC signal control
02
SMC Pneumatic Positioning
03
High Working Efficiency
04
Manual Unloading
Features of FAKRA Automotive Connector Crimping Machine
Control mode: Using Omron PLC signal control; Inverter motor crimping forming; SMC pneumatic positioning; Pneumatic clamping device.
Cycle time: the average single completion time is 5 seconds;
Detection Mode: Use high-precision positioning sensor to position and crimp; Use a digital dial indicator for the second inspection depth after crimping.
Safety Device: The whole machine is equipped with plexiglass protective device and area grating detection device; Can avoid accidental injuries caused by manual positioning.
Parameter
Power Supply AC220V/50HZ
Motor Power 1200W
Weight 120KG
Dimensions 430mm×220mm×900mm
Display Touch screen
Display Interface Chinese/English
Crimping Stroke 40mm/30mm
Height Adjustment 10mm (±0.02mm)
Crimp Shape Hexagon/Octagon

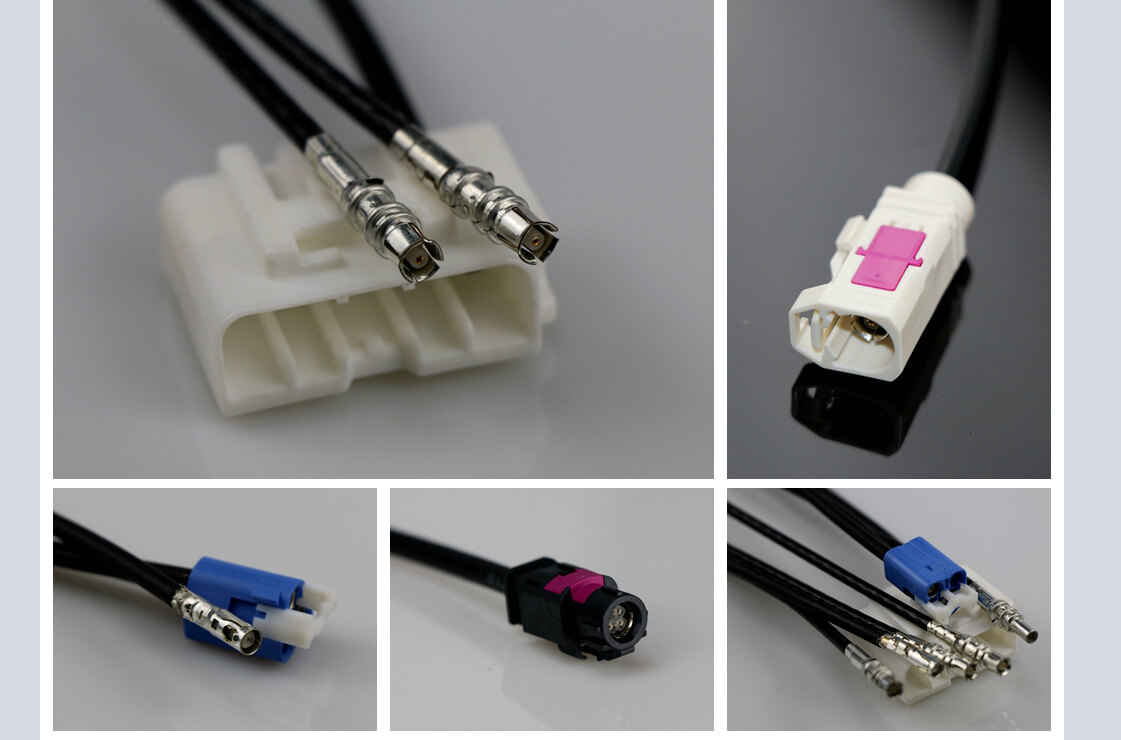

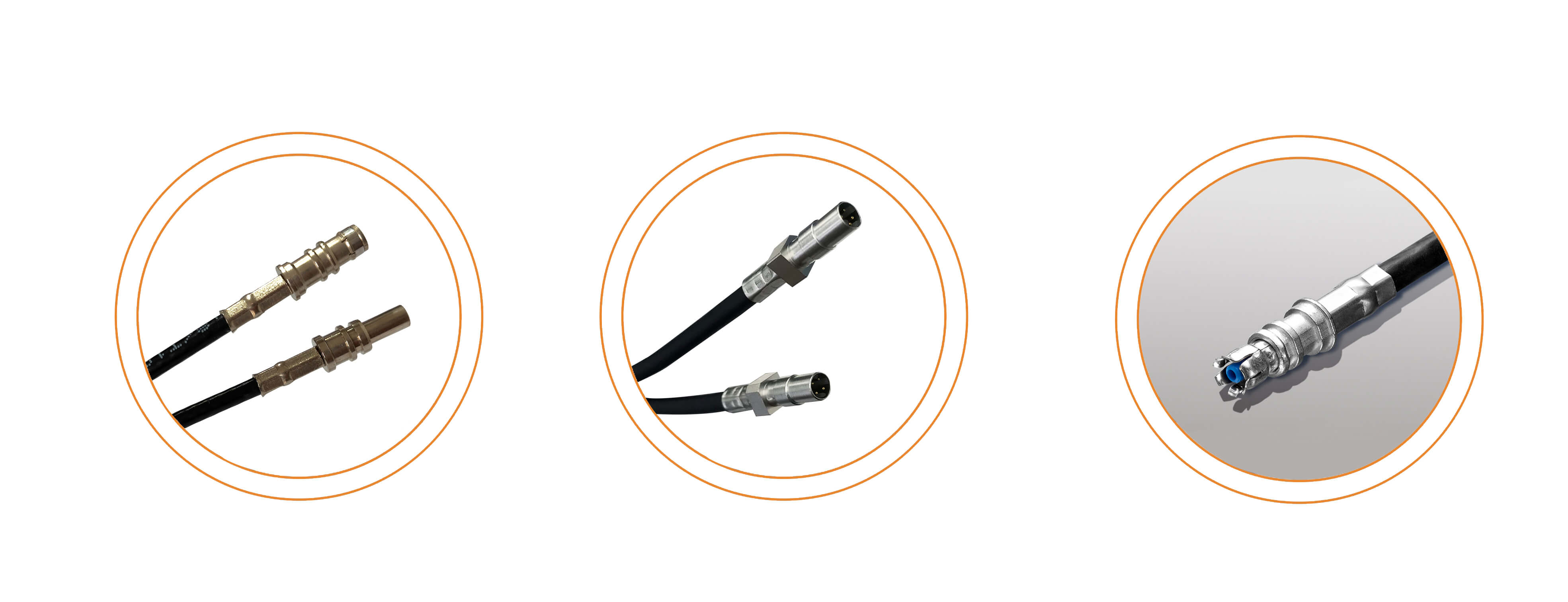

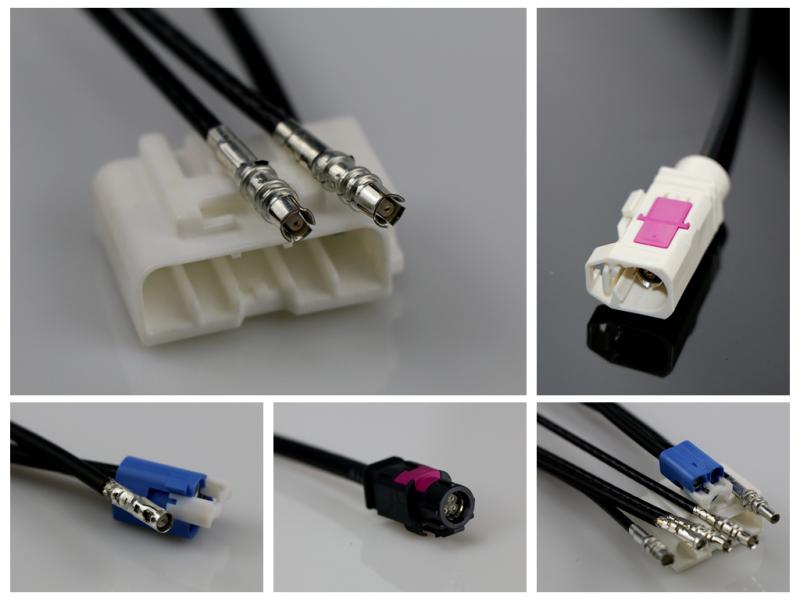

Application
