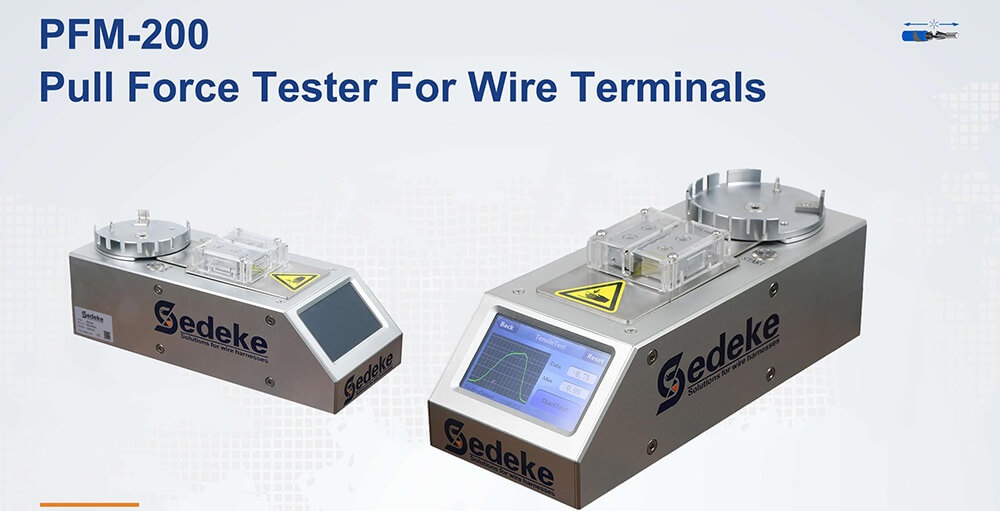

Sedeke PFM-200 Pull Force Tester For Wire Terminals

Sedeke PFM-200 automatic tensile tester is a special instrument used for the detection of terminal pull-off force after crimping of various terminals.
Testing crimp terminals is a critical step in the many steps in the wiring harness assembly process. If the terminal is not properly connected to the end of the wire, it can cause the wire and eventually the entire harness to fail. Sedeke manufacturers use pull tests to evaluate crimp connections and ensure that the terminals are properly connected.
